■ 信浓行星减速步进电机42MM系列选型参数表
|
型号 |
保持扭矩 |
转子惯量 |
额定电流 |
驱动电压 |
卷线电阻 |
卷线电感 |
基本步进角 |
减速比 |
质量 |
|
MODEL NO. |
HOLDING TORQUE |
ROTOR INERTIA |
RATED CURRENT |
DRIVE VOLTAGE |
WINDING RESISTANCE |
WINDING INDUCTANCE |
SETPPING ANGLE |
GEAR RATIO |
MASS |
|
|
(N·m) |
(g·cm²) |
(A/相) |
(V) |
(Ω/相) |
(mH/相) |
|
|
(Kg) |
|
M042C010G短款 |
2.7 |
33 |
1.41 |
24 |
2.1 |
3.3 |
0.18° |
01:10 |
0.38 |
|
M042C010G长款 |
3.5 |
89 |
1.5 |
24 |
2.3 |
1.7 |
0.18° |
01:10 |
0.6 |
|
M042C020G短款 |
4 |
33 |
1.41 |
24 |
2.1 |
3.3 |
0.09° |
01:20 |
0.48 |
|
M042C020G长款 |
6 |
89 |
1.5 |
24 |
2.3 |
1.7 |
0.09° |
01:20 |
0.78 |
■ 信浓行星减速步进电机42MM系列尺寸图

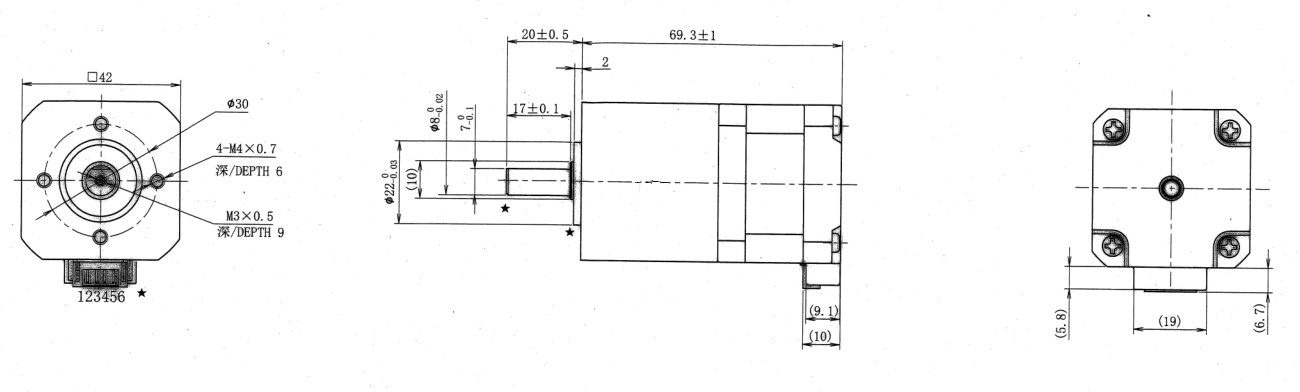

M042C010G短款尺寸图：

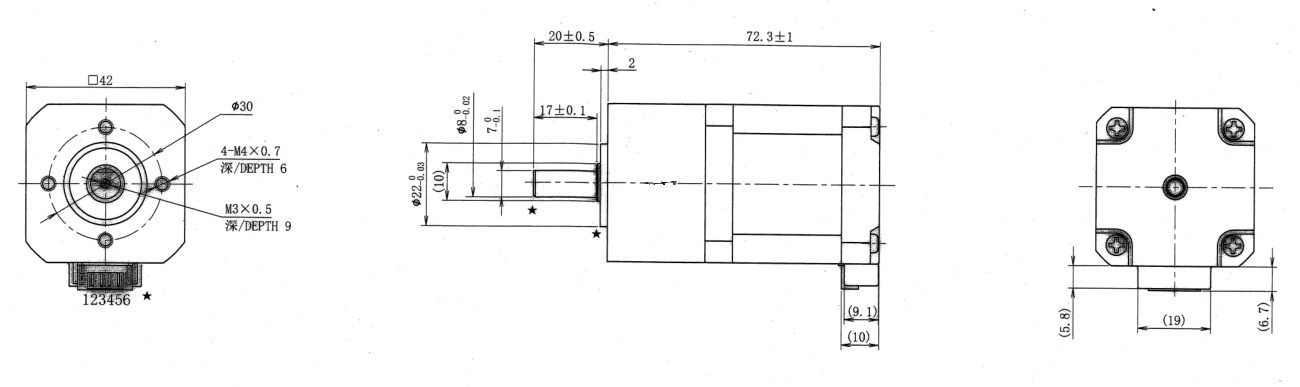

M042C010G长款尺寸图：
M042C020G短款尺寸图

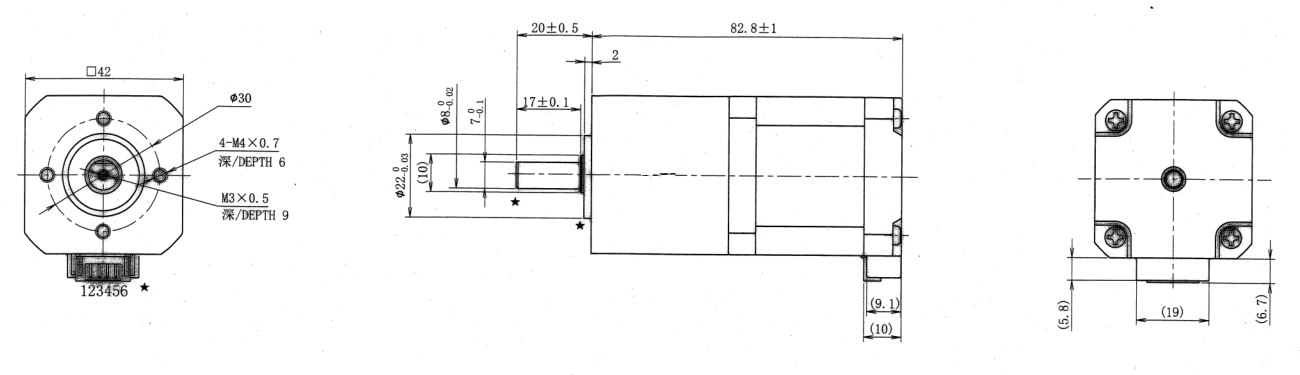

M042C020G长款尺寸图
■ 信浓行星减速步进电机42MM搭配驱动器推荐
|
型号 |
驱动器推荐 |
|
M042C010G短款 |
MD-2522 |
|
M042C010G长款 |
|
|
M042C020G短款 |
|
|
M042C020G长款 |
■ 信浓行星减速步进电机42MM系列接线图示意
